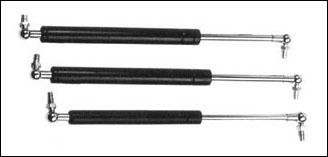

气弹簧（气体支撑杆）
|
称气体撑条。是一种运用十分广泛气动产品,具有结构简单,免维护,适用范围广等特点。
|
|
|
|
|
|
|
|

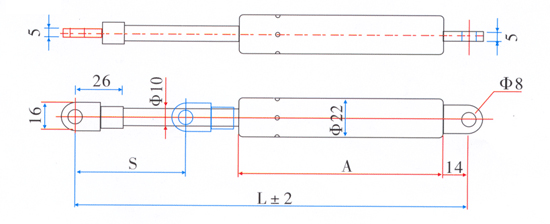

型 号 |
S(行程) |
管长 |
L |
力值 |
|
YQ-15-06-040-80 |
40 |
80 |
150 |
50-280N |
|
YQ-15-06-050-100 |
50 |
100 |
180 |
50-280N |
|
YQ-15-06-060-120 |
60 |
120 |
210 |
50-280N |
|
YQ-15-06-080-140 |
80 |
140 |
250 |
50-280N |
|
YQ-15-06-100-160 |
100 |
160 |
290 |
50-280N |
|
YQ-15-06-120-180 |
120 |
180 |
340 |
50-280N | |
|
|
|
|
|
|
|
|

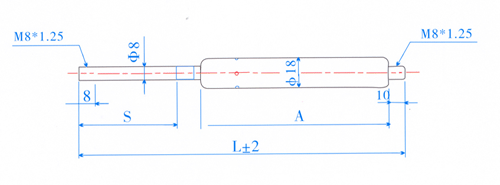

型 号 |
S(行程) |
A(管长) |
L |
力 值 |
|
YQ-18-08-060-120 |
60 |
120 |
198 |
100N-500 |
|
YQ-18-08-080-140 |
80 |
140 |
238 |
100N-500 |
|
YQ-18-08-100-160 |
100 |
160 |
278 |
100N-500 |
|
YQ-18-08-120-180 |
120 |
180 |
318 |
100N-500 |
|
YQ-18-08-140-200 |
140 |
200 |
358 |
100N-500 |
|
YQ-18-08-160-220 |
160 |
200 |
398 |
100N-500 |
|
YQ-18-08-180-240 |
180 |
240 |
438 |
100N-500 |
|
YQ-18-08-200-260 |
200 |
260 |
478 |
100N-500 |
|
YQ-18-08-220-280 |
220 |
280 |
518 |
100N-500 |
|
YQ-18-08-240-300 |
240 |
300 |
558 |
100N-500 |
|
YQ-18-08-260-320 |
260 |
320 |
598 |
100N-500 | |
|
|
|
|
|
|
|
|

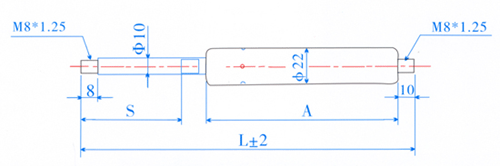

型 号 |
S(行程) |
A(管长) |
L |
力 值 |
|
YQ-22-10-060-115 |
60 |
115 |
193 |
150N-850N |
|
YQ-22-10-080-135 |
80 |
135 |
233 |
150N-850N |
|
YQ-22-10-100-155 |
100 |
155 |
273 |
150N-850N |
|
YQ-22-10-120-175 |
120 |
175 |
313 |
150N-850N |
|
YQ-22-10-140-195 |
140 |
195 |
353 |
150N-850N |
|
YQ-22-10-160-215 |
160 |
215 |
393 |
150N-850N |
|
YQ-22-10-180-235 |
180 |
235 |
433 |
150N-850N |
|
YQ-22-10-200-255 |
200 |
255 |
473 |
150N-850N |
|
YQ-22-10-200-275 |
220 |
275 |
513 |
150N-850N |
|
YQ-22-10-240-295 |
240 |
295 |
553 |
150N-850N |
|
YQ-22-10-260-315 |
260 |
315 |
593 |
150N-850N | |
|
|
|
|

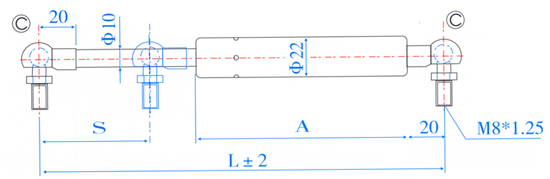

型 号 |
S(行程) |
A(管长) |
L |
力值 |
|
YQ-22-10-060-115 |
60 |
115 |
193 |
150N-850N |
|
YQ-22-10-080-135 |
80 |
135 |
233 |
150N-850N |
|
YQ-22-10-100-155 |
100 |
155 |
273 |
150N-850N |
|
YQ-22-10-120-175 |
120 |
175 |
313 |
150N-850N |
|
YQ-22-10-140-195 |
140 |
195 |
353 |
150N-850N |
|
YQ-22-10-160-215 |
160 |
215 |
393 |
150N-850N |
|
YQ-22-10-180-235 |
180 |
235 |
433 |
150N-850N |
|
YQ-22-10-200-255 |
200 |
255 |
473 |
150N-850N |
|
YQ-22-10-200-275 |
220 |
275 |
513 |
150N-850N |
|
YQ-22-10-240-295 |
240 |
295 |
553 |
150N-850N |
|
YQ-22-10-260-315 |
260 |
315 |
593 |
150N-850N | |
|
|
|
|
|

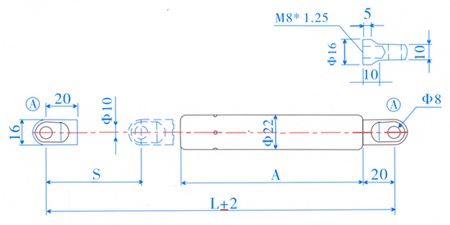

型 号 |
S(行程) |
A(管长) |
L |
力值 |
|
YQ-22-10-060-115 |
60 |
115 |
215 |
150N-850N |
|
YQ-22-10-080-135 |
80 |
135 |
255 |
150N-850N |
|
YQ-22-10-100-155 |
100 |
155 |
295 |
150N-850N |
|
YQ-22-10-120-175 |
120 |
175 |
335 |
150N-850N |
|
YQ-22-10-140-195 |
140 |
195 |
375 |
150N-850N |
|
YQ-22-10-160-215 |
160 |
215 |
415 |
150N-850N |
|
YQ-22-10-180-235 |
180 |
235 |
455 |
150N-850N |
|
YQ-22-10-200-255 |
200 |
255 |
495 |
150N-850N |
|
YQ-22-10-200-275 |
220 |
275 |
535 |
150N-850N |
|
YQ-22-10-240-295 |
240 |
295 |
595 |
150N-850N |
|
YQ-22-10-260-315 |
260 |
315 |
635 |
150N-850N | |
|
|
|
|
型 号 |
S(行程) |
A(管长) |
L |
力值 |
|
YQ-22-10-060-115 |
60 |
115 |
215 |
150N-850N |
|
YQ-22-10-080-135 |
80 |
135 |
255 |
150N-850N |
|
YQ-22-10-100-155 |
100 |
155 |
295 |
150N-850N |
|
YQ-22-10-120-175 |
120 |
175 |
335 |
150N-850N |
|
YQ-22-10-140-195 |
140 |
195 |
375 |
150N-850N |
|
YQ-22-10-160-215 |
160 |
215 |
415 |
150N-850N |
|
YQ-22-10-180-235 |
180 |
235 |
455 |
150N-850N |
|
YQ-22-10-200-255 |
200 |
255 |
495 |
150N-850N |
|
YQ-22-10-200-275 |
220 |
275 |
535 |
150N-850N |
|
YQ-22-10-240-295 |
240 |
295 |
595 |
150N-850N |
|
YQ-22-10-260-315 |
260 |
315 |
635 |
150N-850N | |
